1750 Bypass Door Hardware Kit Hardware Detail
1750 Series Bypass Door Hardware Installed Example Installed example
1750 Series Bypass Door Hardware Hanger Specifications 4-Wheel Hanger Specifications

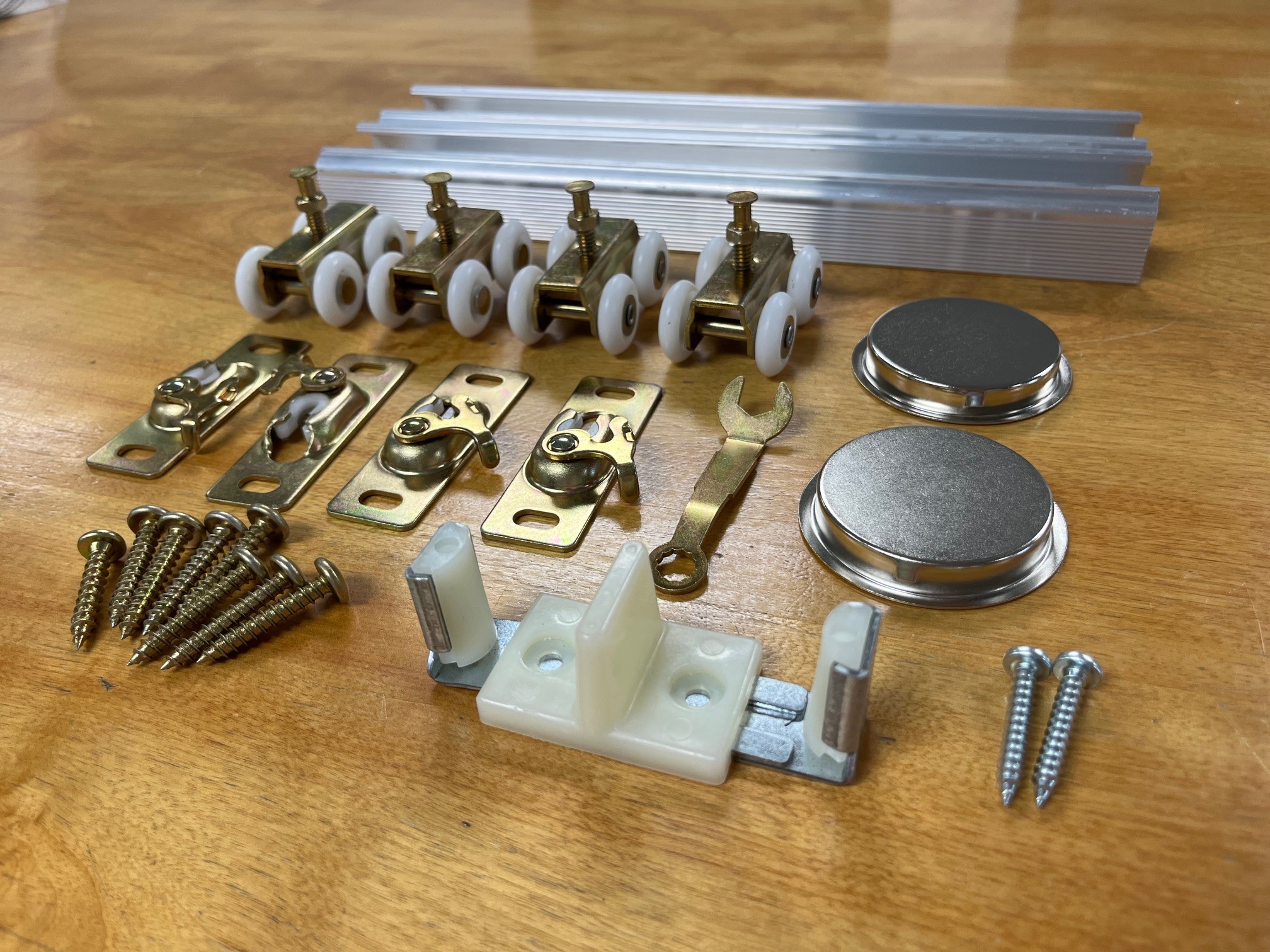

1750 Series Bypass Door Hardware Package Hardware Package
1750 Series Bypass Door Wrench Adjustment Hardware is easily adjusted with included wrench.
Heavy Duty Bypass Door Category Icon

Heavy Duty Bypass Door Hardware with V-Groove Aluminum Track and 4-Wheel Hanger System

1750 Bypass

A&F Woods’ bypass door hardware with v-groove aluminum track and 4-wheel hanger system is designed for smooth, space-saving door operation, supporting doors up to 150 or 250 pounds. Ideal for residential and commercial use, this durable system ensures reliable performance with easy installation for bi-pass and tri-pass doors.

Features

  • 1750 BP150 supports panels weighing up to 150 lbs.
  • 1750 BP250 supports panels weighing up to 250 lbs.
  • Self-aligning wheel system
  • Large 1” wheels provide smooth action
  • Snap-in feature makes hangers easy to install
  • Vertical adjustments can be made after installation
  • Hanger system allows for easy panel removal
  • Durable V-groove aluminum track provides smooth, quiet operation
  • Kits include track, 4-wheel hangers (4), adjustable floor guide, 1/8″BN pulls (2) and all necessary screws
  • Track spacer allows for easy installation of 1 3/4” bypass and tri-pass doors (Remove for 1-3/8″ Doors)

150 lb Hardware

  • 4BPK4-01750AL (48”)
  • 4BPK5-01750AL (60”)
  • 4BPK6-01750AL (72”)
  • 4BPK8-01750AL (96”)
  • 4BPK10-01750AL3DR (120”)
  • 4BPK12-01750AL3DR (144”)

250 lb Hardware

  • 4BPK4-01750BBAL (48”)
  • 4BPK5-01750BBAL (60”)
  • 4BPK6-01750BBAL (72”)
  • 4BPK8-01750BBAL (96”)
  • 4BPK10-01750BBAL3DR (120”)
  • 4BPK12-01750ALBB3DR (144”)

150 and 250 LB Sliding Door Hardware Assembly and Installation Instructions

150 and 250 LB Sliding Door Hardware Specifications
